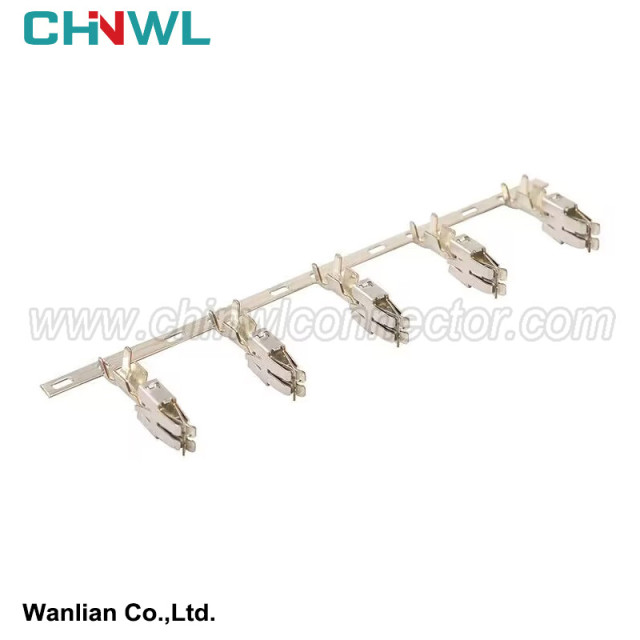

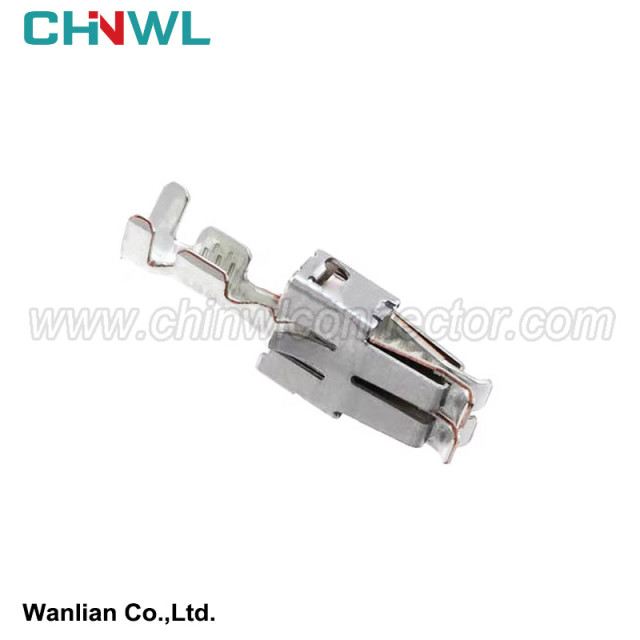

CHINWL #: DJ6231-E6.3B
Mfr. #: 0-0927837-2 1.0-2.5mm² 927837-2 1.0-2.5mm² 964326-1 1.0-2.5mm² 0-0964326-1
|
Wanlian part number: |
|
DJ6231-E6.3B |
|
Original number: |
|
0-0927837-2 1.0-2.5mm² 927837-2 1.0-2.5mm² 964326-1 1.0-2.5mm² 0-0964326-1 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
3) The heat protection of the wire beam
The effect of temperature on the wire beam is very great, which not only reflects the heat resistance of the online beam material itself, but also changes in electrical performance caused by temperature changes. In the design of the online beam layout, it should be particularly concerned about the line arrangement of the high -temperature area. In the car, there are mainly the following areas in high temperature areas:
exhaust pipe
Exhaust
Exhaust gas re -circulating tube or valve
silencer
Catalytic converter
Turbocharged device
The temperature is the following requirements for the layout of the wiring beam:
The minimum distance of the high -temperature area device above the beam is not less than 150mm. The catalyst needs to achieve more than 300mm, and the high -temperature bandage is required.
Many factors will affect the feasible space of the line bundle arrangement nearby in the heat source (air flow, heat transfer method, the degree of heat, etc.). Therefore, the accurate temperature field data must be obtained to determine how the line beam is arranged and how to choose. For high -temperature areas, the temperature field analysis needs to be performed after the sample cars come out to determine the rationality of the line bundle layout and the beam bands.
4) Wire beam waterproof and dust protection protection
Waterproof and dustproof protection is often considered during the layout of the wire beam. For this, there are mainly the following aspects of the line layout:
When the wire beam passes through the sheet metal, you need to set the dripping point (more than 75mm) to avoid flowing into the body by the external water or other liquid passing through the wire beam, or under the influence of the siphon effect, the water may flow into the connection of the cab.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
