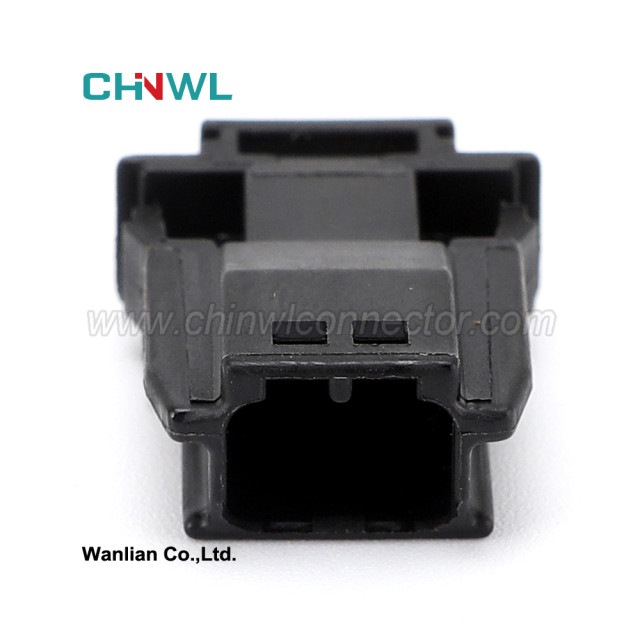

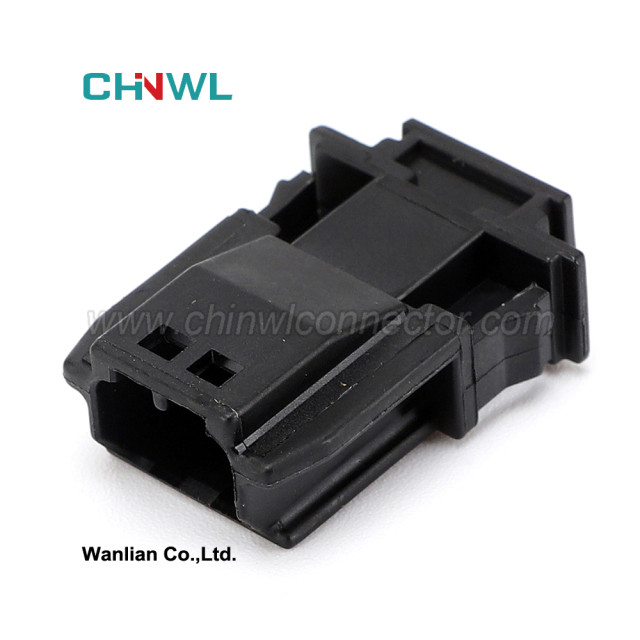

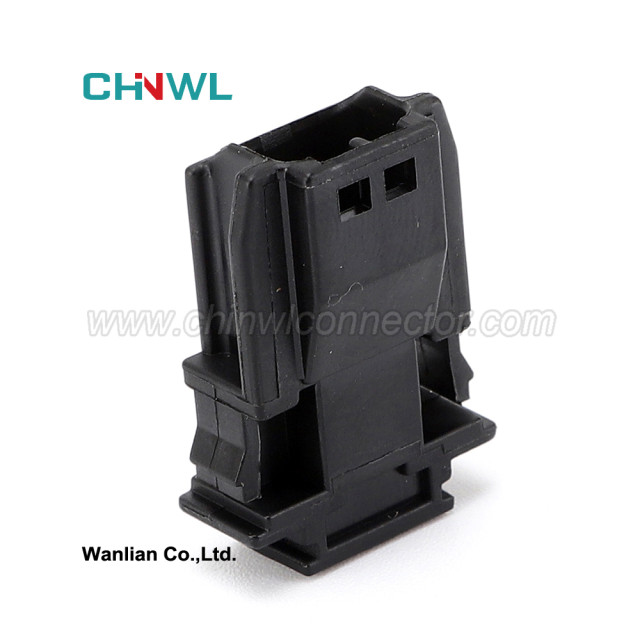

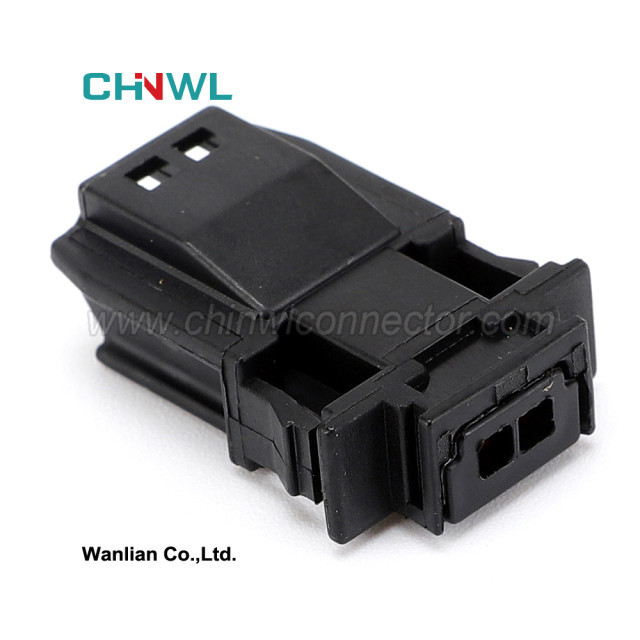

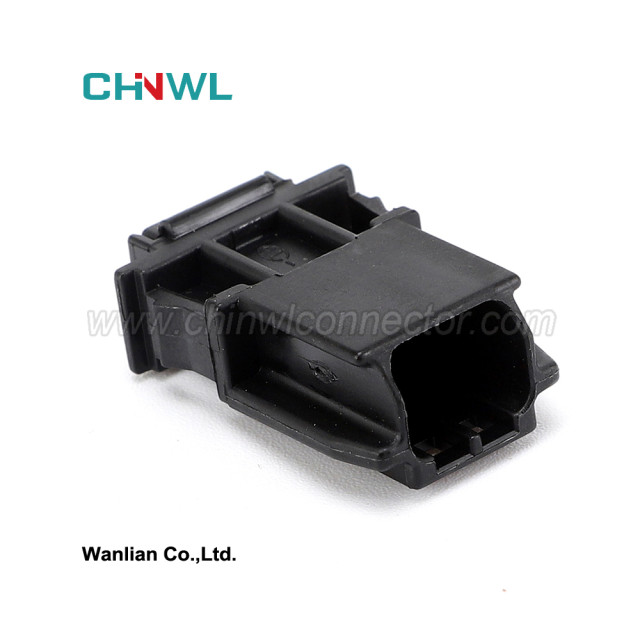

2 Pin / 2 pin MX19002P52 Car Rearview Mirror plug Connector Terminal Plug Socket

2 pin MX19002P52 Car Rearview Mirror plug Connector Terminal Plug Socket

Wanlian #:

Mfr. #: MX19002P52

Online Inquiry

    Wanlian part number:



    Original number:

     MX19002P52

    Gender:

     Female

    Specification:

    Housing: PBT+G; PA66+GF; PA66; PBT; Nylon

    Type:

    Connector

    TUV, TS16949, ISO14001, ISO 9001, RoHS conform:

    Yes

    MOQ:

    No minimum order quantity

    Supply sample:

    Yes

    Customized drawing with Decal, Frosted, Print are available as request

    Yes

    Payment method:

    We accept Paypal, TT, Alipay, West Union etc.

    Transportation method:

    Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc.

    Production Capacity:

    1000000pieces/Month

MX19002P52



NO.11 Coreless wire crimping

Reason: Coreless wire crimping is caused by short stripping head, which generally occurs in automatic crimping.

Consequences: non-conductive, directly affecting the conductive performance of the product.

NO.12 The front core wire is too long

Reason: The stripping head is too long or the crimping gesture is incorrect.

as a result of:

1. If the core wire is too long, it will easily come into contact with the terminals on the side and cause a short circuit. (TCL product DF14-T has experienced customer defects).

2. The protruding core wires can easily push up the socket bayonet, causing insufficient assembly and insertion, and the wires can easily fall off the socket. (Such products often appear in LONSID crimping outlets)

NO.13 Deformation of contact parts

Reason: The terminal crimping die is damaged or the blade is misaligned.

Consequences: It cannot fit into the socket during assembly. Even if it is inserted, there is no pull-out force. This is common on VH-T terminals.

NO.15 terminal lamination

Reason: When crimping with a continuous crimping machine, the wire moving speed is not consistent with the crimping speed.

Consequences: The product cannot be used, and the mold and die may be easily damaged.

NO.16 crimping height

OK: Look with your eyes. The outer skin should be pressed lightly but not penetrate the outer skin or touch the core wire.

On the high side: The outer skin feet do not touch the outer skin and the wires are not fixed.

On the low side: The outer skin of the foot wrap penetrates the outer skin and touches the core wire, which may easily cause damage to the core wire.






Simple instructions:
