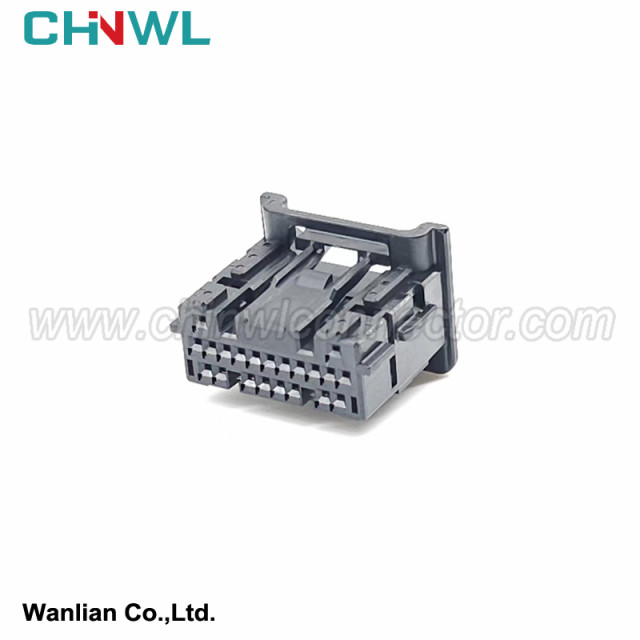

21 pin 2229097-2 90980-12C61 Car Computer Module Harness Plug Connector With Wire For Toyota Lexus 0.7 Series

2.1, easy to assemble

In terms of assembly of automobile wiring harness layout, two aspects are mainly considered: the wiring harness itself is easy to assemble; the wiring harness fixing structure is easy to assemble.

2.1.1. The total wiring harness body is easy to assemble.

When arranging automobile wiring harnesses, consideration should be given to not adding too many processes to the vehicle assembly process. Separation methods can be used for different areas of the vehicle, such as instrument panels, doors, ceilings, left and right bodies, etc. And during the design process, the characteristics of different areas are considered in a targeted manner, and the designed wiring harness direction must not affect the assembly of other vehicle parts; when wiring harness through holes, the connector with the largest outer envelope diameter of the required through hole , its diameter must be smaller than the diameter of the fan hole, otherwise the wire harness will not be able to pass through.

2.1.2. The wire harness fixing structure is easy to assemble.

Assemblability must be considered when designing the wiring harness fixing method and fixing structure, and it is not possible to add too many processes to the assembly process while pursuing fixing and reliability. Based on the actual design experience, the following precautions are summarized.

1) Try to use a simple fixing method, especially for areas with small spaces, such as the wiring inside the door, the wiring between the body-in-white and the interior, due to the small space, try to use plastic buckles or tapes to fix it.

2) The through-hole rubber sheath should be designed so that it can be completely assembled in the fan hole with an installation force of less than 100 N.

3) For the fixing parts that need to be pressed by fingers, the operating force is 45 N; for the fixing parts that are pressed by hands, the operating force is 75 N.

4) During the design process of the wiring harness fixing structure and related functional boxes, common standard parts should be used as much as possible, and the types of standard parts should be as few as possible, and the use of special tools in assembly and maintenance should be reduced through early design.

5) For the case where the connector or wiring harness fixing structure needs to pass through the cab during assembly, if ordinary hexagon nuts and bolts are used for the fasteners, it is difficult for one person to complete it independently. At this time, welding nuts or self-tapping are generally considered. Nails are fixed.

6) The fixing holes of the wiring harness should be opened in the plane area of the structural part as much as possible. When fixing on a curved surface, it is best to make a small plane on the structural part.

7) When arranging the electrical wiring harness, consider the modular assembly of the large assembly as much as possible to increase the assembly speed of the production line. For example, the transmission wiring harness and the engine wiring harness are assembled to the transmission and the engine body respectively, and then assembled to the chassis as a whole.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
