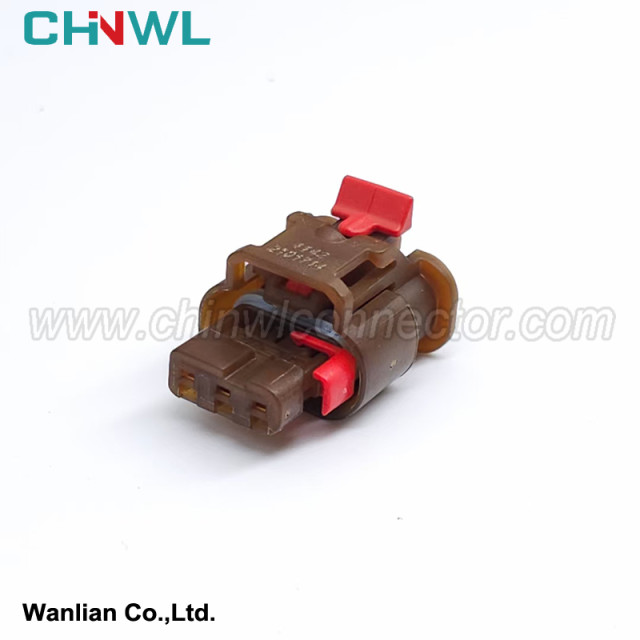

3 pin 4-2098541-2 2138907 Auto Wire Cable Harness Auto Connector Housing Plug 1.2 Series

1. Length direction
The suspension system matching the vehicle length is mainly reflected in the evolution of the wheelbase, and the expansion of the wheelbase is relatively simple. The wheelbase change is realized by fixing the front axle and moving the rear axle along the X direction. However, at the same time as the wheelbase changes, we must pay attention to the requirements of the suspension system due to changes in the front and rear pitch characteristics of the vehicle caused by wheelbase changes, especially wheelbase extensions.
2. Width direction
The matching of the suspension system to the vehicle width is mainly reflected in the evolution of the wheelbase, and there are two adjustment schemes.
(1) Adjusting the length of the suspension rod system to match the wheelbase evolution plan First, it is necessary to solidify and unify the internal interfaces of the front and rear suspension systems. Then, based on the vehicle width and bandwidth requirements and the planned tire size, by keeping the inner hard point of the sub-frame (see section 6.3.1.3 for details on the hard point) still, the outer 1/4 hard point moves in the Y direction, and the front pillar is synchronized in the Y direction Move, adjust the size of the drive shaft, stabilizer bar, steering link and front swingarm ball joint to achieve wheelbase changes. This kind of suspension adjustment scheme needs to be widened in the size of the whole vehicle, which not only ensures the interface of the front longitudinal beam of the vehicle body, but also allows more space for the front suspension to adjust the wheel angle, so as to meet the needs of larger tires and the turning diameter of the whole vehicle to meet the design Require.
Schematic diagram of suspension system track adjustment
(2) Adjust the steering knuckle hub bearing mounting surface or the rim offset to realize the wheelbase variation adjustment plan First, adjust the wheelbase in a small range by adjusting the distance between the steering knuckle hub bearing mounting surface and the outer point of each rod system. The structure and size of the steering knuckle need to be adjusted. Compared with the modification of the rim offset mentioned below, the relative position between the center of the wheel and the center of the bearing can be kept unchanged, thereby ensuring the design life of the bearing. Furthermore, when there is little demand for wheelbase changes during vehicle development, the rim offset can be considered to be modified. This method can maximize the sharing of suspension and peripheral components. However, the relative positional relationship between the center of the wheel and the center of the bearing needs to be adjusted. Generally, the offset between the center of the wheel and the center of the bearing should not be too large. Excessive offset of the hub bearing will affect the life of the bearing.
3. Height direction
The suspension system matches the car height evolution. First of all, based on the target of the vehicle's ground clearance, the outer diameter of the tire is increased by adjusting the tire specification, so that the wheel center beat meets the requirements of the vehicle's ground clearance. Then, through the adjustment of the adapter bracket between the front suspension and the installation point of the lower vehicle body, the overall Z-direction translation of the suspension is realized, and the upward expansion is matched with the height of the vehicle. In the end, the height evolution of the whole vehicle from sedan, cross to SUV will be realized.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
