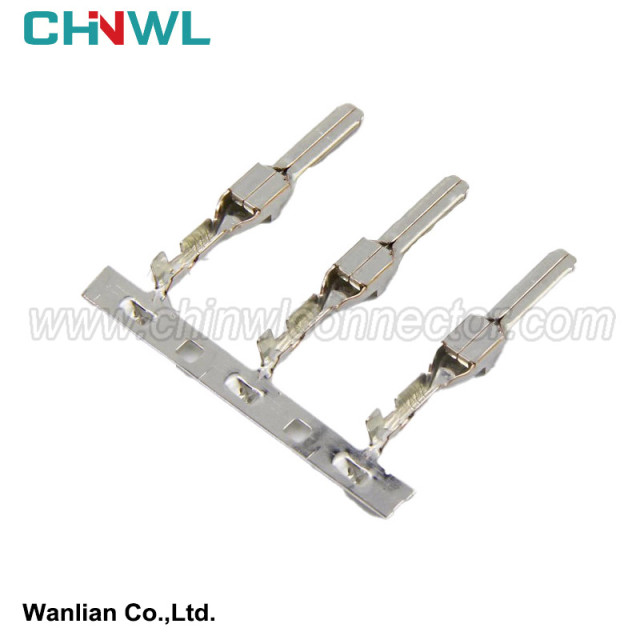

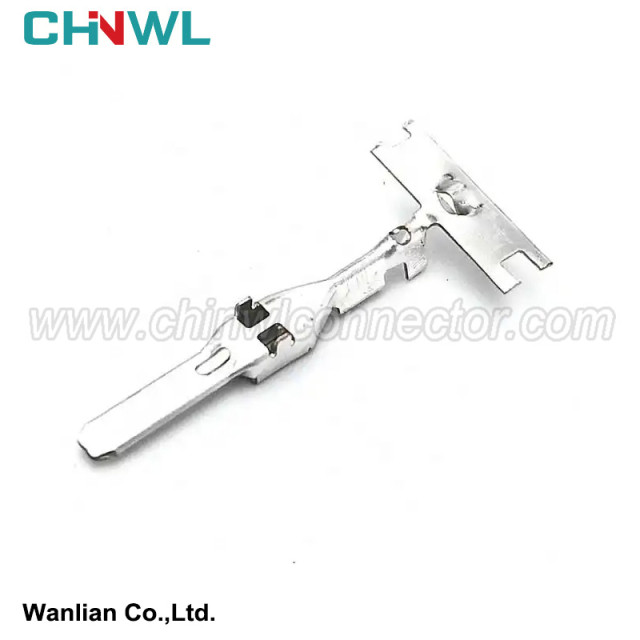

7114-4110-02 Automotive Line Speed Connector Terminal Accessory Connector

11) Inspection. The detailed introduction is as follows.

First inspection: Create the terminal pressure testing of the terminals before pressing various types of terminals, report to the inspection department for inspection, and truthfully fill in the tensile test record table, one formula, the inspector signed, and the inspection department will be reported. share.

Self -inspection: After the production of the line is made, the self -inspection is performed, and the self -inspection form is well filled in.

Three inspections: terminal pressure connection, terminal welding, terminal plugging, and connection connection to the self -inspection process for video multimedia records. The operator of the same process conducts other inspections, and the inspector conducts the multimedia records.

Full inspection: The appearance, size, and wire beam assembly of each set of wire beams are inspected by the inspector.

Process requirements: Strengthen the test process inspection of the wiring beam, the inspection process is strictly executed by the assembly of each wire beam, and the inspection records are truthfully fill in.

12) Packaging protection of the end of each branch. After the wire beam is qualified, the bracket end (insert) of each branch line is packaged and protects with plastic bags, and fixed with rubber bands.

Process requirements: During the production process of the cable beam, each process must be controlled by excess objects, keeping hands, operating platforms and equipment, tools used, etc. to avoid the entry of excess objects when the beam is made, which affects the performance of the wire beam. The cable beam is made to complete the carrier plug connection to protect.

13) Wire beam packing. Put the qualified wire beam assembly into the carton or plastic bag, and paste the label to mark the wire beam diagram number, name, batch number, quantity.

Process requirements: Wire beam assembly is packed and identified.

3 Low -voltage beam production process improvement

The improvement of wire beam process production improves from the aspect of improving the appearance quality of the line beam, saving production costs, improvement of equipment, improvement of process processes, process methods, etc., and production of high -standard new line bundles that meet the technical requirements of special automobiles.

3.1 Wire beam plug -in option selection improvement

The wire beam interpretation is the core component of the wire beam. The performance of the plug -in connection directly determines the overall performance of the wiring beam, and it plays a decisive role in the stability and safety of the electrical component of the vehicle. Plug -in waterproof plug -in, with waterproof sealing ring, and achieve waterproof levels of technical requirements. The interpretation is a secondary lock structure of the terminal, and the plastic shell secondary lock mechanism is used to ensure that the connection is firmly connected and the terminal has no return.
