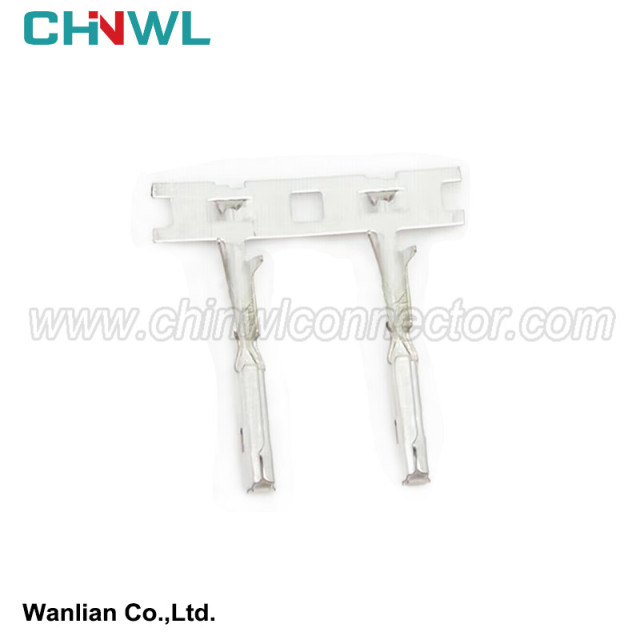

7116-4720-02 Terminal Connector Socket Contact AWG Crimp

The wiring beam installation diagram is mainly appeared in the form of a wiring beam. The lines on the diagram are small. The expression of connected between each component becomes its main content. In order to express the color of the wire and the terminal code of the connector, it often needs to be supplemented by supplementing it. Wire beam packet and terminal number table and wire beam terminal wiring table.

1. The contents of the line beam

① The composition of the wire beam. The car line drawing is composed of multiple wire beams, with the main line beam and the division beam. On the figure, the composition of each line should be shown. There are several branches on each line. How many cables are there on each branch, and what is the color and stripes of the wire.

② Wiring code and wiring logo. The number of electronic components on the car is large and complicated. In order to make the connection correct, each connection point should be marked with the wiring code and the wiring logo.

③ The length of the line beam. The length of the wiring beam includes the total length of the wire beam, the length of each branch, and the length of the two wire intervals.

④ Inserter. Because there are multiple wiring beams, the wire beam, the branch and the wiring beam, the branch and the electrical appliances are connected by a plug. The position of the hole, the shape of the interpretifier, and whether several neighboring interpretors are easily confused.

2. Wire color

(1) Terms

Monochrome wire: The insulation surface is a color of a color.

Double -color wire: The insulation surface is a wire of two colors.

Main color: a large color in the two -color wire.

Auxiliary color: a small color in the double -color wire.

(2) The color and code of the wire

The color and code of the wire should be the provisions of the symbol 18-1.

(3) Composition of wire color

The color of the monochrome wire consists of a color specified in Table 18-1; the color of the two-color wire consists of two colors specified in Table 18-1; the color of the wire should be prioritized, and the two colors are used.

(4) Rub iron line

The iron wires of various automotive electrical appliances should be used. Black wires have no other use except for iron.

(5) Label of wire color

The labeling of the wire color is expressed in color code. If the color of the monochrome wire is red, it is marked as "R"; the first color of the two -color wire is the main color, the second color is auxiliary color, the main color is red, and the auxiliary color is white. It is marked as "RW".

Simple instructions：
