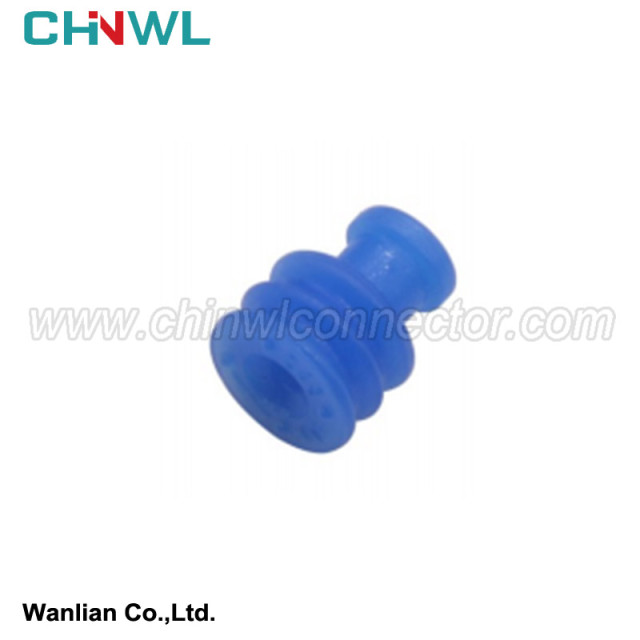

7158-3031-90 Automobile Connector Waterproof Sealing Rubber

7) assembled plug -in: The wiring bundle is composed of the needle foot, shell, tail clip, sealing blockage, secondary locking and other parts. The plug -in device is divided into public insertifiers and mother inserters. Insert the terminal into the corresponding plug-in jack according to the plug-in point of the drawing. The space is installed blindly according to the technical requirements.

Process requirements: When the terminal is inserted, pay attention to the direction of the terminal insertion, and the side of the terminal card hook is the same as the internal limit terminal direction of the insert. The terminal should be inserted straight to avoid skewing the terminal. The terminal insertion into the plug -in pores until the sound of the "click" sound is heard, and the light -pull wire is tested to check whether the terminal is locked correctly. Use the principle of "Push Push" for self -test. When a clear sound is heard, it means that the insert terminal has been locked by the internal buckle of the insert. The terminal is enough.

GD-414 silicon rubber is seized at the end end of the waterproof plug. There is no vulnerability and no point. The surface is uniform and smooth.

8) Heat shrinkage tube. Before assembling the insertifier, first penetrate the tube of the tube into the end of the wiring. After the insert is assembled, the thermal heat shrinkage tube is fixed at the tube and the tail of the inserter.

Process requirements: When baking with glue thermal tube heating, the electric heating equipment should be adjusted to 250-350 ° C, and the processing products should be evenly heated and moved slowly. When heating, the hot air gun should be adjusted to 150-250 ° C, and the processing products are evenly heated, moved slowly, and should not stay above 2s in one place. After the heat shrinks, the surface of the thermal shrinkage tube is cleaned, flat, no damage, no damage, cracks, wrinkles, drums, and two ends. Pulling one end of one end without displacement, off, and terminal pressure on the terminal.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
