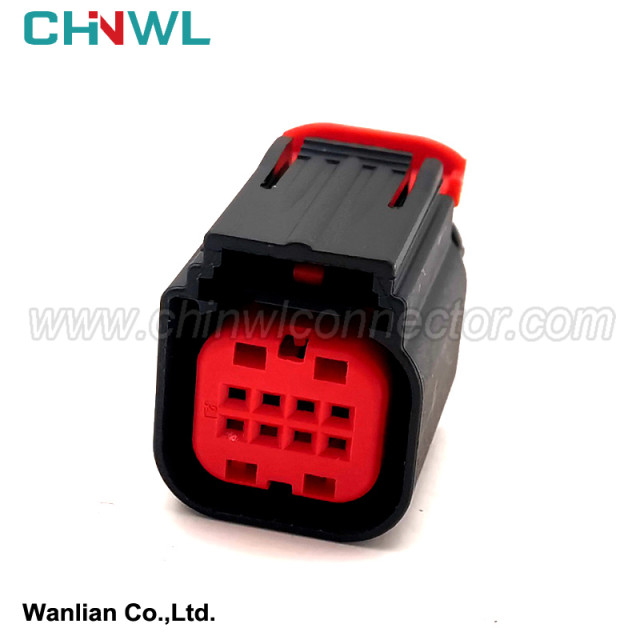

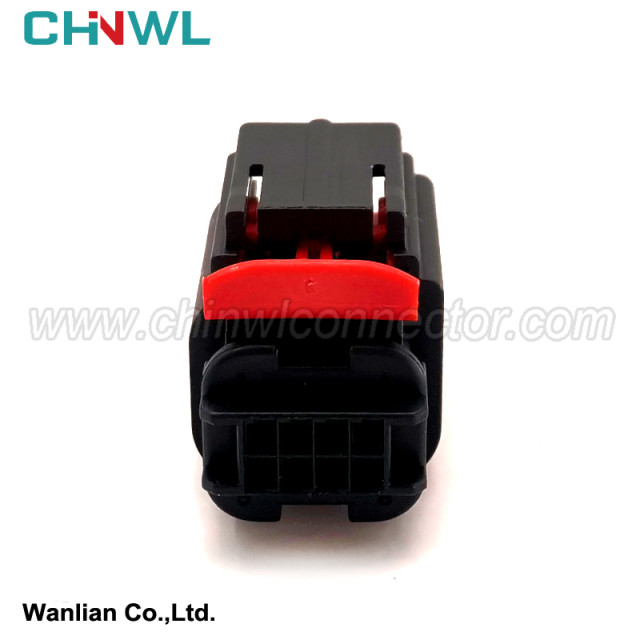

Wanlian #: WL082A1-0.6-21
Mfr. #: 1411001-1
Mating #: WL082A1-0.6-11
Accessories: Terminal Seal
|
Wanlian part number: |
|
WL082A1-0.6-21 |
|
Original number: |
|
1411001-1 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
4. HVIL (High Voltage Interlock)
(4.1) Design HVIL functional purpose
Confirm the integrity of the entire high-voltage system. When the high-voltage system circuit is disconnected or the integrity is damaged, the safety measures of the entire vehicle are activated.
(4.2) Realization of HVIL function
a. The entire system structure is required, and it must be designed in when the system is developed;
b. Mainly through the connector;
c. The HVIL circuit is a low-voltage power circuit, which is independent from the power circuit.
(4.3) Principle of connector HVIL function realization
Power and signal terminals shall meet:
——When connecting, the power terminal should be connected first, and then the signal terminal should be connected.
——When disconnecting, the signal terminal should be disconnected first, and then the power terminal should be disconnected.
Special note: The connection of the power terminal indicates good contact, and virtual contact is unacceptable
5.shielding
Alternating electric field shielding: In order to reduce the coupling interference voltage of the alternating electric field to the sensitive circuit, a metal shield with good conductivity can be installed between the interference source and the sensitive circuit, and the metal shield should be grounded.
The main difference between shielded and unshielded connectors is whether there is a metal shield with good conductivity.
6. Protection level
The IP protection level is composed of two numbers. The first marked number indicates the level of dustproof and foreign object intrusion prevention of electrical appliances, and the second marked number indicates the degree of airtightness of electrical appliances against moisture and water intrusion. The larger the number, the higher the protection level. The higher the level.
7. Outgoing way
It mainly refers to the angle between the cable outlet angle at the tail of the electrical connector plug and the normal direction of the socket mounting surface. According to this division, the common ones are 90° (bent) and 180° (straight) outlet electrical connectors.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
