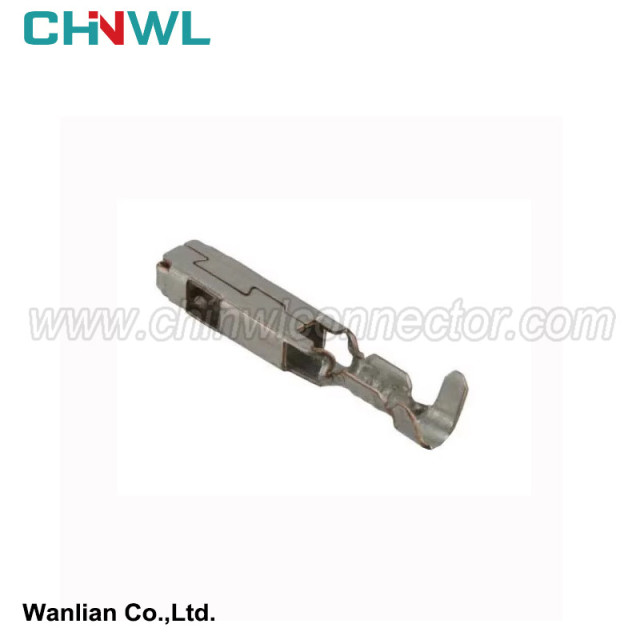

CHINWL #: 988971109 98897-1109
Mfr. #: 988971109 98897-1109
|
Wanlian part number: |
|
988971109 98897-1109 |
|
Original number: |
|
988971109 98897-1109 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
Basic knowledge
1. The composition of the vehicle circuit
Automotive circuits usually include power circuits, starting circuits, ignition circuits, lighting and lighting signal device circuits, instrument information system circuits, auxiliary device circuits and electronic control system circuits.
(1) Power circuit
The power circuit is also called a charging circuit, which is a circuit composed of battery, generator, regulator and charging indicator device. Electric energy allocation (power distribution) and circuit protection devices also belong to the power circuit.
(2) Starting circuit
The starting circuit is a circuit consisting of starting motivation, starting relay, starting switch and starting protection device. Under low temperature conditions, the preheating device and its control circuit generally belong to the starting circuit.
(3) ignition circuit
The ignition circuit is a unique circuit of gasoline engine cars. It is composed of ignition coils, electrical appliances, electronic ignition controllers, spark plugs and ignition switches.
(4) Lighting and lighting signal device circuit
Lighting and lighting signal device circuits are circuits composed of front lights, fog lights, outline lights, turning lights, brake lights, reversing lights, internal lighting lights, and circuits related to control relays and switches.
(5) Instrument information system circuit
The instrument information system circuit is a circuit composed of the instrument and its sensors, various alarm indicators and controller.
(6) Auxiliary device circuit
The auxiliary device circuit is set to improve the safety and comfort of the vehicle. It generally includes the wind window scraping and cleaning device circuit, the wind window defrost (anti -fog) device circuit, the air -conditioning device circuit, and the audio device circuit. At present, many models are also equipped with window electric lifting devices, electrical control door locks, electric seat adjustment devices, and electric remote control rearview mirrors. The circuits of these devices are also auxiliary device circuits.
(7) Electronic control system circuit
The electronic control system circuit is mainly composed of the engine control system (including control of fuel injection, ignition, discharge and other controls), automatic transmission and fixed speed cruise control system, braking anti -dead system, and airbag control system.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
