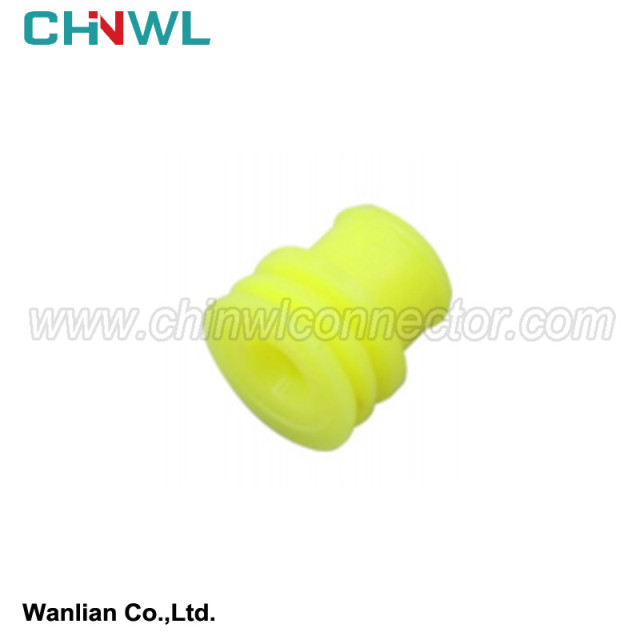

Wanlian #: WLD-017
Mfr. #: 963245-1
Size: L: 8.2mm ID: 2.7 OD: 8.2
Material：Silicon
|
Wanlian part number: |
|
WLD-017 |
|
Original number: |
|
963245-1 |
|
Color: |
|
yellow |
|
Operating Temperature range: |
|
-40℃~125℃ |
|
Application: |
|
Waterproof sealing for Automotive connector and Wiring Harness |
|
Specification: |
|
The silicone oil,High tear resistance,OEM |
|
Type: |
|
Single Wire Seal (SWS) |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
|
Advantage: |
|
High qualified mold design, smooth appearance, no flash, for automatic crimping machine |
|
Purpose: |
|
Dustproof，Waterproof |
2. Component material composition of the car connector
1. Connector housing: The connector shell is the main part of the connector. It is usually made of plastic materials and has good chemical corrosion resistance, abrasion resistance and temperature resistance. The material of the connector shell can be selected according to the requirements of the use environment. For example, the connecter housing used in high temperature environments usually use high temperature plastic, such as PA46, PA6T, PA9T, etc.
2. Plugs and sockets: plugs and sockets are two important components in the connector. They are usually made of copper and have good conductivity and corrosion resistance. The structural design and size of the plug and socket must meet the requirements of the connector standard to ensure the interchangeability and reliability of the connector.
3. Insulation: The insulation is usually a key component in the connector. It can protect the connector from being influenced by the external environment and prevent short -circuit and leakage between electrical devices. The insulator is usually made of plastic materials, such as polyamide, polytamide, etc.
4. Conductive membrane: Conductive membrane is another important component in the connector. It is usually coated on the surface of the plug and socket, which can increase the conductive performance and corrosion resistance of the connector. Conductive membranes are usually made of metal materials, such as nickel and chromium.
5. Environmental sealing parts: Environmental sealing is one of the key components of the connector. It can protect the connectors from infringement of water, dust, sand, and chemicals, and ensure that the connector is stable for a long time. Environmental seals are usually made of rubber materials, such as silicone rubber and fluorine rubber.
6. External protection materials: External protection materials are mainly used for external protection of the connector, which can prevent the connector from being physical damage and chemical corrosion. External protection materials are usually made of polyamide, polyurethane, polyester and other materials.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
